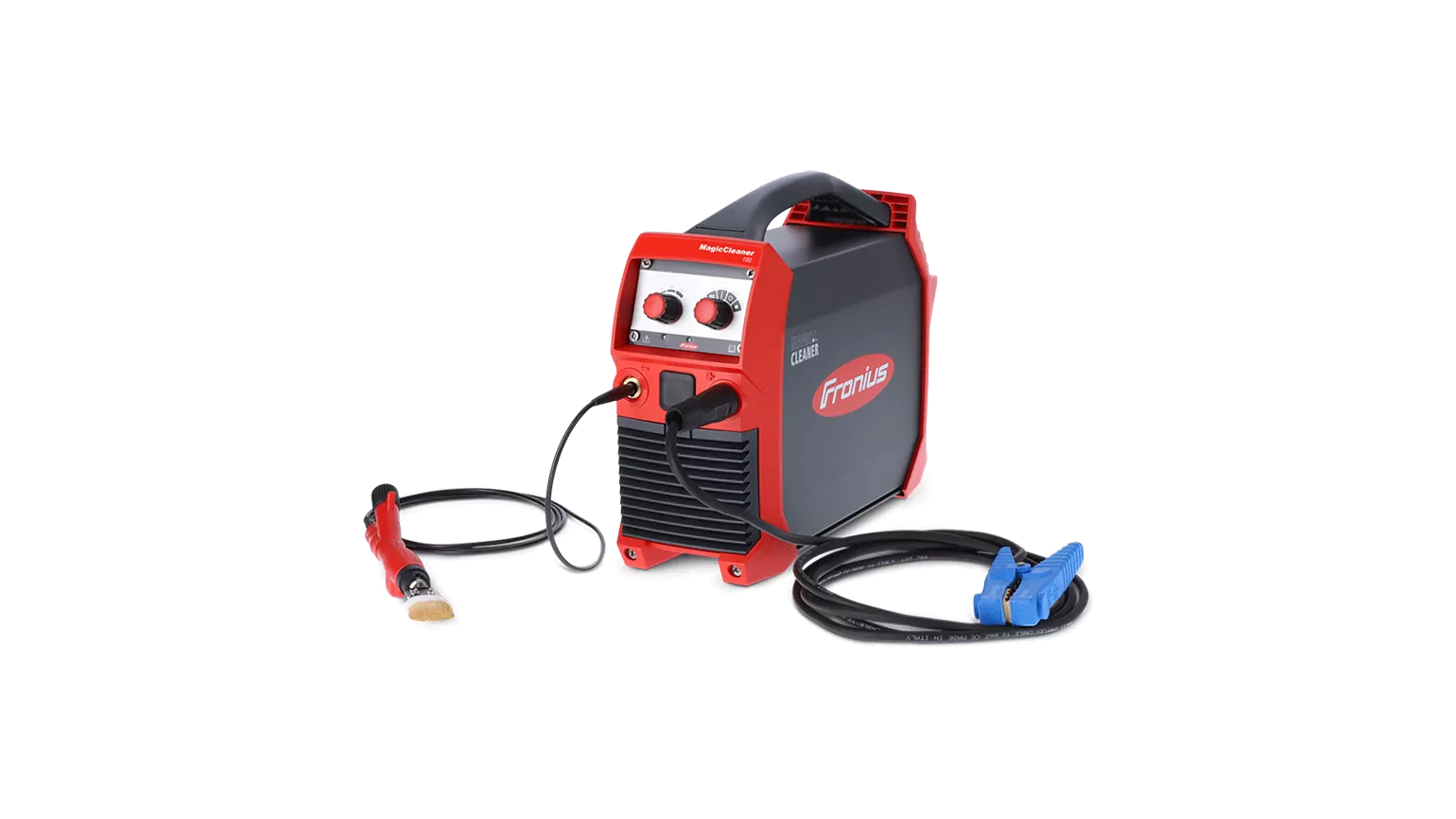

MagicCleaner 150

Stainless steel: Optimally rework TIG welds and surfaces

With the MagicCleaner device series, we provide you with innovative technology for the treatment of TIG weld seams and stainless steel surfaces. Cleaning, polishing and labeling of stainless steel are possible with it. In contrast to mechanical or chemical cleaning, the material surface is not affected. No exposure times are required. And an additional passivation process is no longer necessary.

Please choose your desired product.

Ready to use in 2 steps and with only 4.5 kg an absolute lightweight. The MagicCleaner 150 is the perfect companion on the construction site or in the workshop.

Product details

Technical Data

GENERAL DATA

Mains voltage	230V
Mains voltage tolerance	-15% / +10%
Welding current max.	14 A
Open-circuit voltage	30 V
Degree of protection	IP23
Length	365 mm
Width	130 mm
Height	285 mm
Weight	4,5 kg
Weight	4,5 kg

Contact

Would you like to find out more about the product?

Send us a message

Find contacts worldwide

Safety Information

Find all relevant documents here

Warranty activation

Activate your warranty for free and without obligation

Show all downloads for product

Interactive Operating Instruction

Clear, digital and mobile optimized for every device

Full Flexibility

Cleaning and passivation in a single working step

Our MagicCleaner allows you to clean and passivate TIG weld seams and stainless steel surfaces in a single step.

Cost-effective electrolyte consumption

Whether using the tube screwed onto the cleaning torch orthe included 1.8 l tank (MC300), electrolyte consumptioncan be precisely delivered in a sustainable and resource conserving manner.

Ready for use in max. 3 steps

Set-up is quick and easy. All important parameters (operating mode, cleaning performance, electrolyte dosing) are adjustable on the easy-access front panel.

Innovative inverter technology

Our inverter technology ensures reduced power consumption for the same output power, resulting in advice that is both energy-efficient and lightweight.

Before / After

One device, three functions

Clean, polish, print

Clean and passivate in one step. MagicCleaner is the most advanced system for electrochemical cleaning units. With one machine, you can clean, polish, and inscribe stainless steel. Remove post-weld temper colouration and restore the protective passive layer at the same time.

After cleaning, the polishing process ensures a consistently lustrous surface and improves the steel passivation process. In addition, the MagicCleaner provides the option to permanently inscribe stainless steel surfaces - the perfect alternative to stickers or laser engraving.

Innovative technology

1. Cleaning

The electrochemical cleaning process uses alternating current (AC) and electrolyte fluid to remove post-weld temper colouration and perform passivation.

2. Polishing

Electrochemical polishing removes some of the base material from the workpiece and lightens surface colouration. This results in a consistent lustre after cleaning, providing an improved passivation process.

3. Printing

Permanently inscribe stainless steel with company logos, item numbers, barcodes, etc. Alternating current (AC) is used for black printing and direct current (DC) for white printing - the perfect alternative to stickers or laser engraving.

MagicCleaner 150

Ready to use in 2 steps and extremely lightweight at just under 4.5 kg, MagicCleaner 150 is the perfect companion on the construction site or in the workshop.

Scope of supply

/ Cleaning torch MC150

/ Grounding cable 10 mm², 3 m

/ Torch holder MC150

/ Basic kit: electrodes/brushes/pads

Highlights

/ Ready for use in 2 steps

/ Lightweight at just under 4.5 kg

Easy to use

/ Direct selection of the desired process

Small cleaning torch

/ Manual electrolyte dosing

/ Attachable 100 ml tube

Torch holder

/ For easy securing of pads and storage of the torch

Housing

/ Tried-and-tested robust housing

Functions / properties	MagicCleaner 150	MagicCleaner 300
AC cleaning	🗸	🗸
DC polishing	🗸	🗸
Printing (AC & DC)	🗸	🗸
Integrated pump	-	🗸
Output	15 A	30 A
Cleaning torch MC150	🗸	🗸
Cleaning torch MC300	-	🗸
Cleaning fluid (contents)	100 ml tube	1.8 l tank
ToolCase 60	🗸	-
Toolcase 120	-	🗸
ToolBox 210	-	🗸
Trolley available	-	🗸

MagicCleaner 150 und 300

Inverter technology

/ Weight reduction

/ Energy-saving

Existing certifications

/ CE, UKCA, UL/CSA, CCC, EAC, AUS/NZ

To MagicCleaner 300

Accessories

Clean

A wide variety of brushes to choose from for welded pipes, undercuts, sharp edges or complex shapes

Cleaning and polishing

Various pads and electrodes for linear weld seams, corner welds, T-joints or butt welds

Cleaning, polishing and printing

Electrolytes for cleaning, polishing or printing as well as a neutraliser (for neutralising the electrolytes and avoiding build-up on the edges)

Print set

Complete printing set for inscribing surfaces with logos, item numbers, barcodes, etc. in black or white. Individual films are available upon request.

ToolCase 60

Compact transport box for the MagicCleaner 150

Clean

A wide variety of brushes to choose from for welded pipes, undercuts, sharp edges or complex shapes

Cleaning and polishing

Various pads and electrodes for linear weld seams, corner welds, T-joints or butt welds

Cleaning, polishing and printing

Electrolytes for cleaning, polishing or printing as well as a neutraliser (for neutralising the electrolytes and avoiding build-up on the edges)

Print set

Complete printing set for inscribing surfaces with logos, item numbers, barcodes, etc. in black or white. Individual films are available upon request.

ToolCase 60

Compact transport box for the MagicCleaner 150
