MIG/MAG Torches

The right welding torch for every application

From difficult to access components to remote job sites, welding torches from Fronius are designed to cover an extremely broad range of applications. Hosepacks up to 15 meters long and torch bodies of different lengths and angles make life easier for every welder, not to mention the remote control in the handle on certain models. Welders can count on the flexibility they need with Fronius – guaranteed.

The benefits

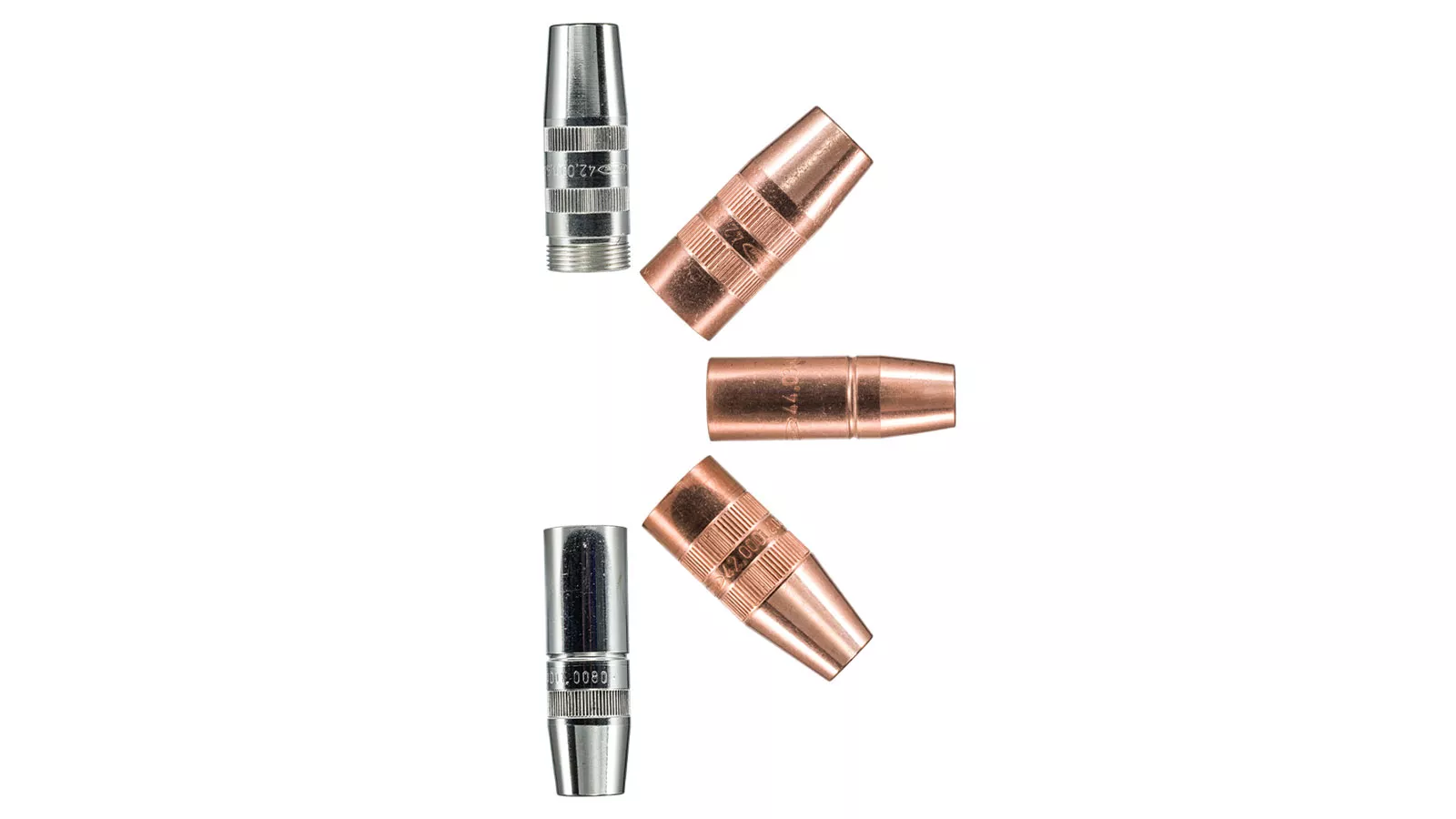

Long wearing part lifetimes

Each wearing part is designed and manufactured to deliver the longest service life and for optimal heat dissipation. For example, a high-quality copper alloy(CuCrZr) is used for the contact tips in order to extend their service life.

Long service life

Top-quality components maximize the service life of the welding torch. Outer tubes for the torch body made from stainless steel, high-quality hosepack components, power cables with maximum flexibility and a larger-dimensioned copper cross-section all ensure longer-lasting welding tools.

Repairable

Despite the long service life of Fronius welding torches, faulty parts can be easily swapped out and repaired. A comprehensive range of roughly 40 replaceable spare parts on water-cooled manual welding torches allows sustainable management of your equipment pool.

Flexible

The Multilock System leaves you with a wide choice of over 80 different torch bodies of different lengths and angles, affording the welder even greater flexibility. Torch bodies can also be produced to customer-specific requirements at lengths of up to 1.2 m and angles from 0-90°.

Technology & ergonomics

Video: Technology and ergonomics

Optimized for professional use

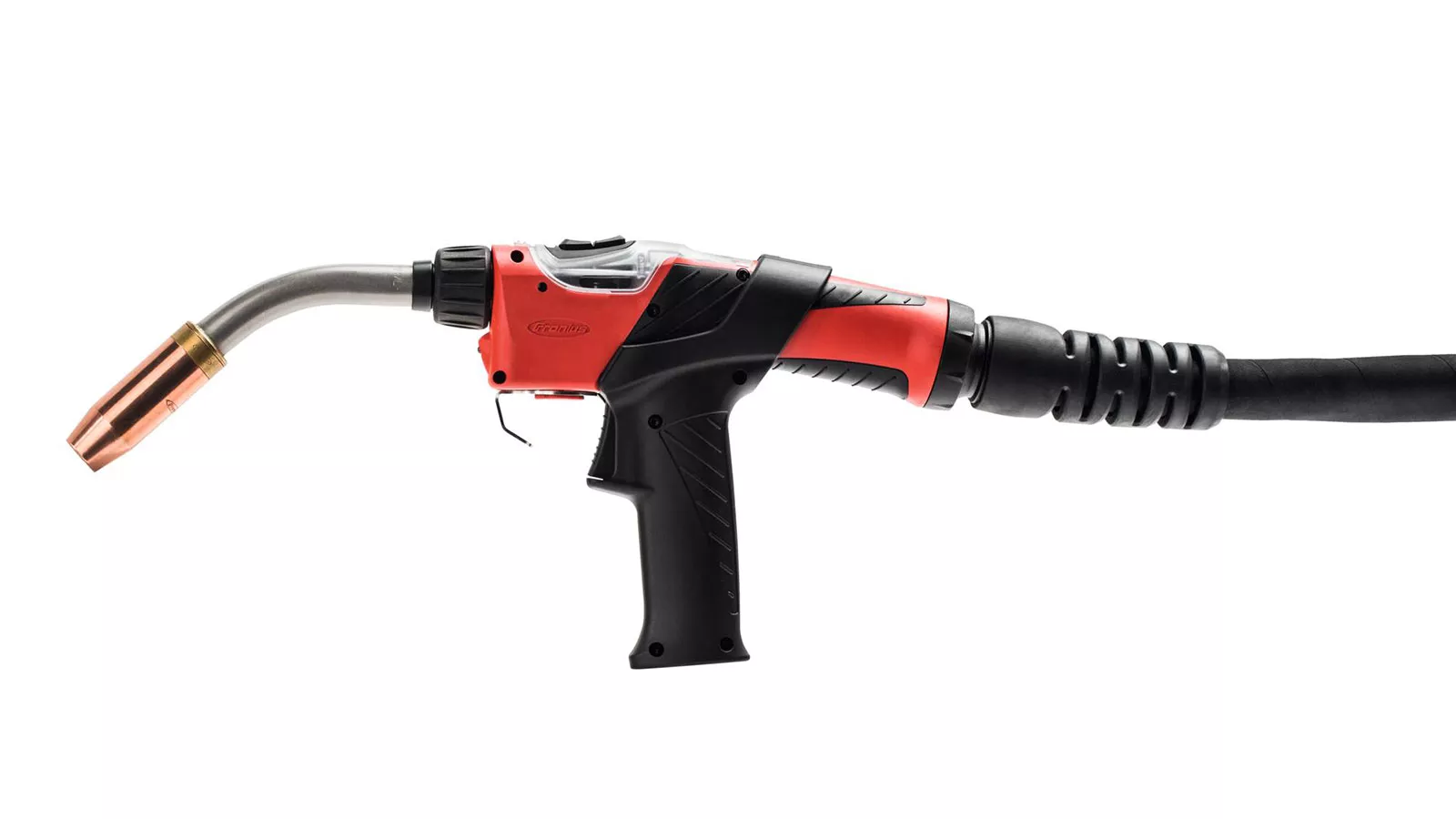

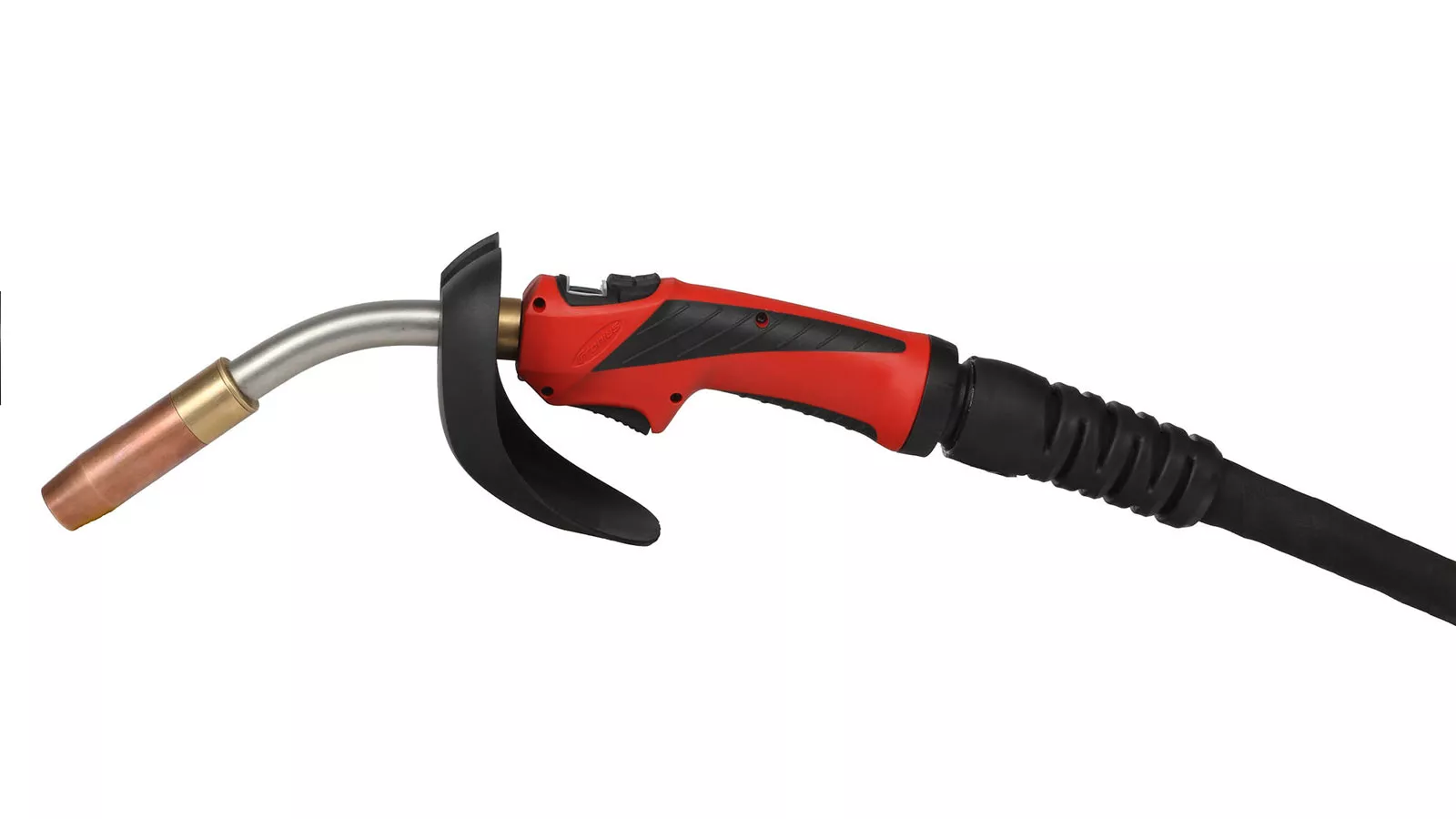

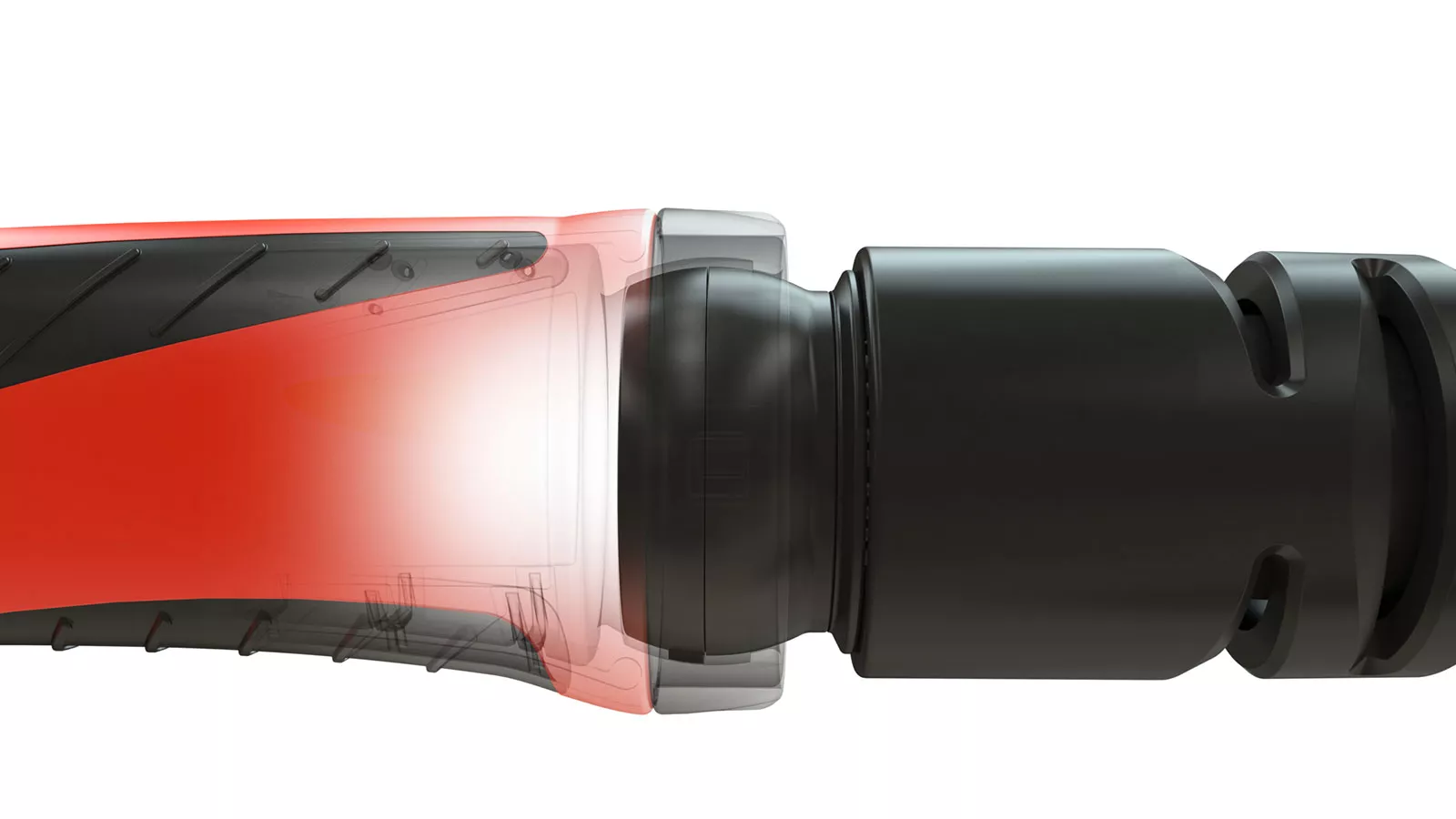

Fronius welding torches represent the perfect symbiotic relationship between technology and ergonomics. The ergonomic handle with anti-slip components lies comfortably and securely in the hand, allowing the torch to be guided with ease. The ball joint and optimal weight distribution prevent fatigue during welding.

Jobmaster: Everything is under control

With JobMaster welding torches, the welder can use the remote control with color display integrated in the handle to get a quick overview of important welding parameters such as welding power, wire speed, and previously stored jobs, and can adjust them to the desired value.

Highlights & options - Technology & ergonomics

Exceptional accessibility

Video: Accessibility

The right solution for every application

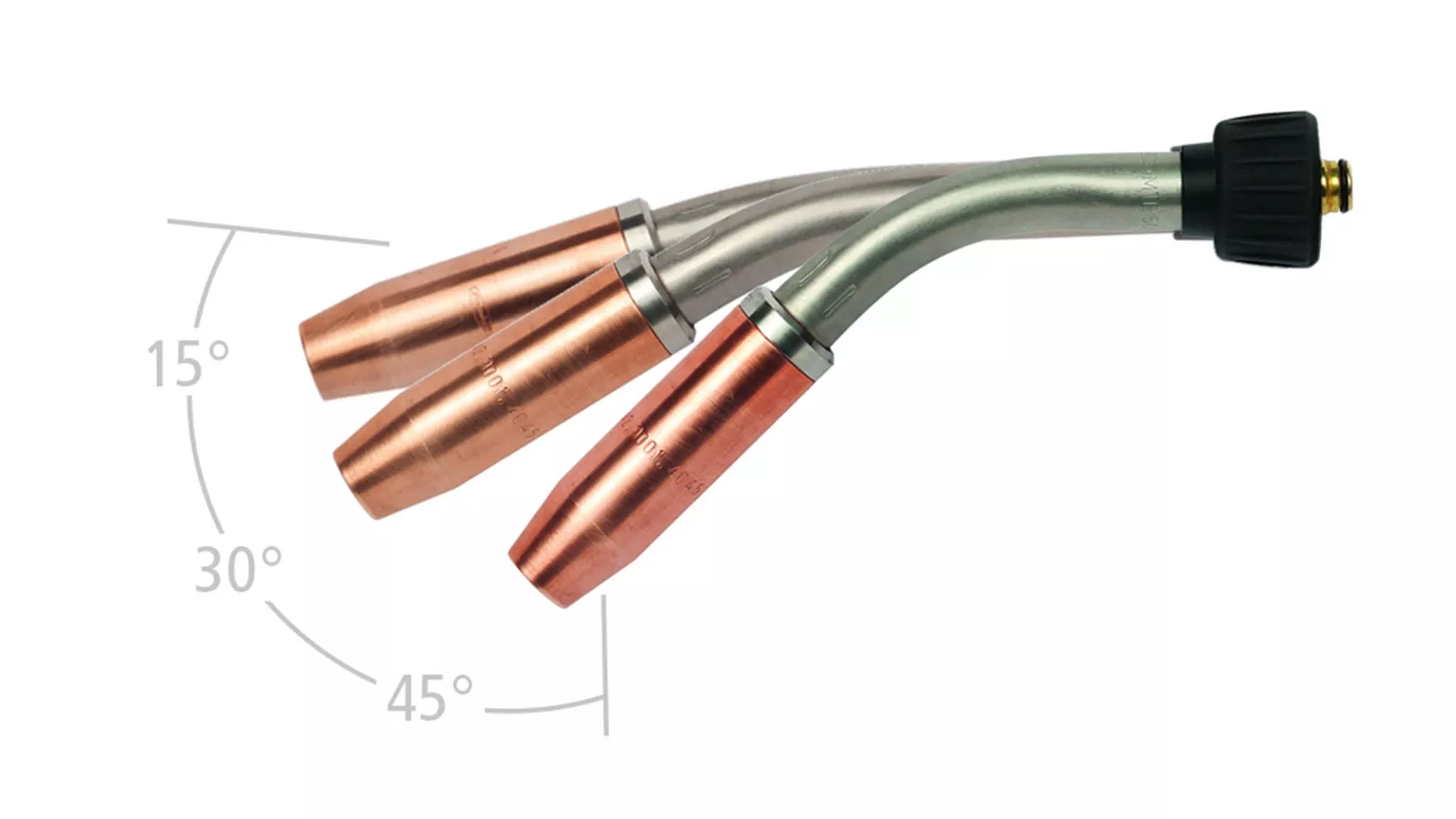

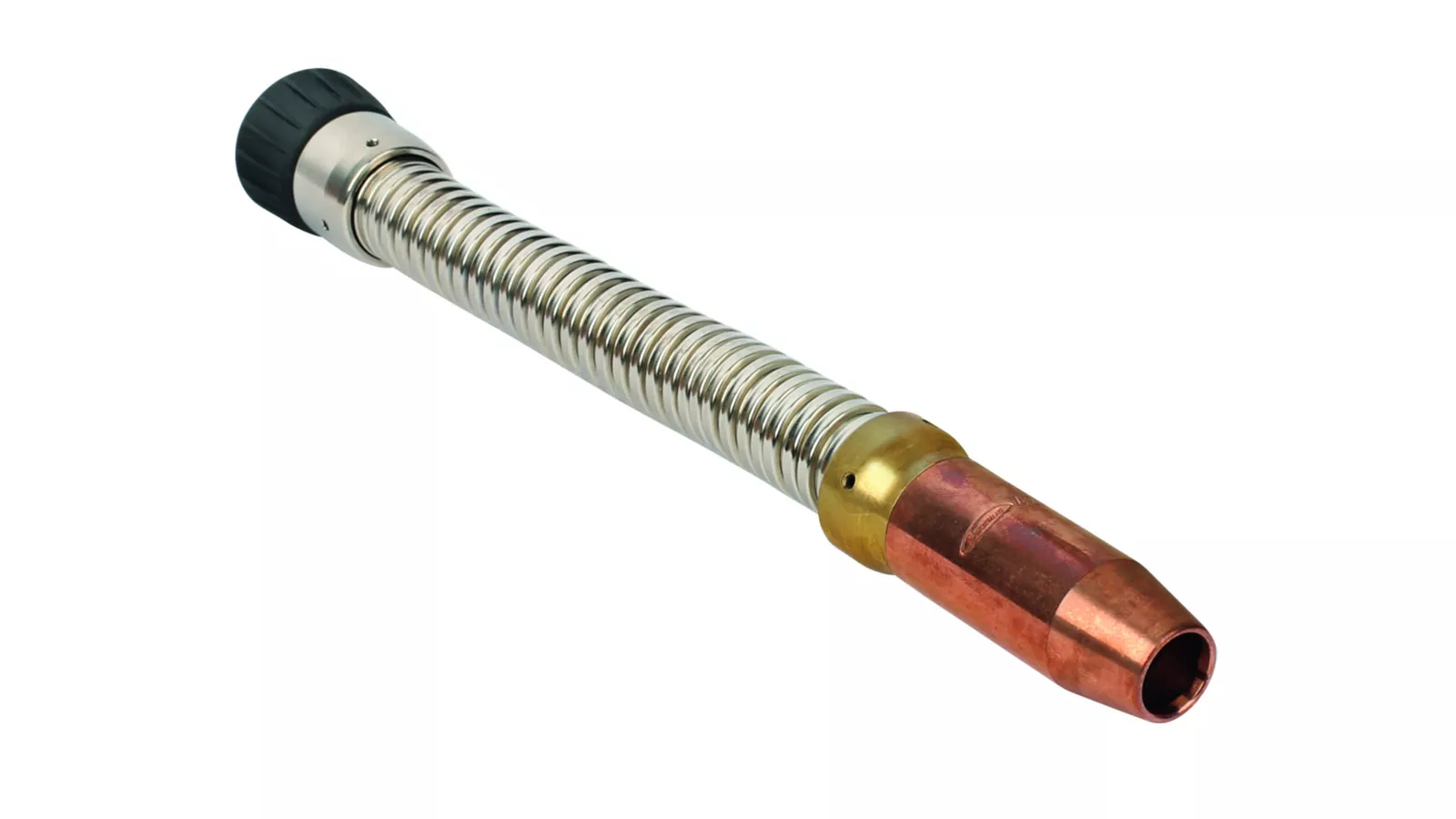

With a range of more than 80 different torch bodies available, the perfect combination of angle and length can be selected for components with challenging geometries. In addition, individual solutions are possible to meet customer-specific requirements.

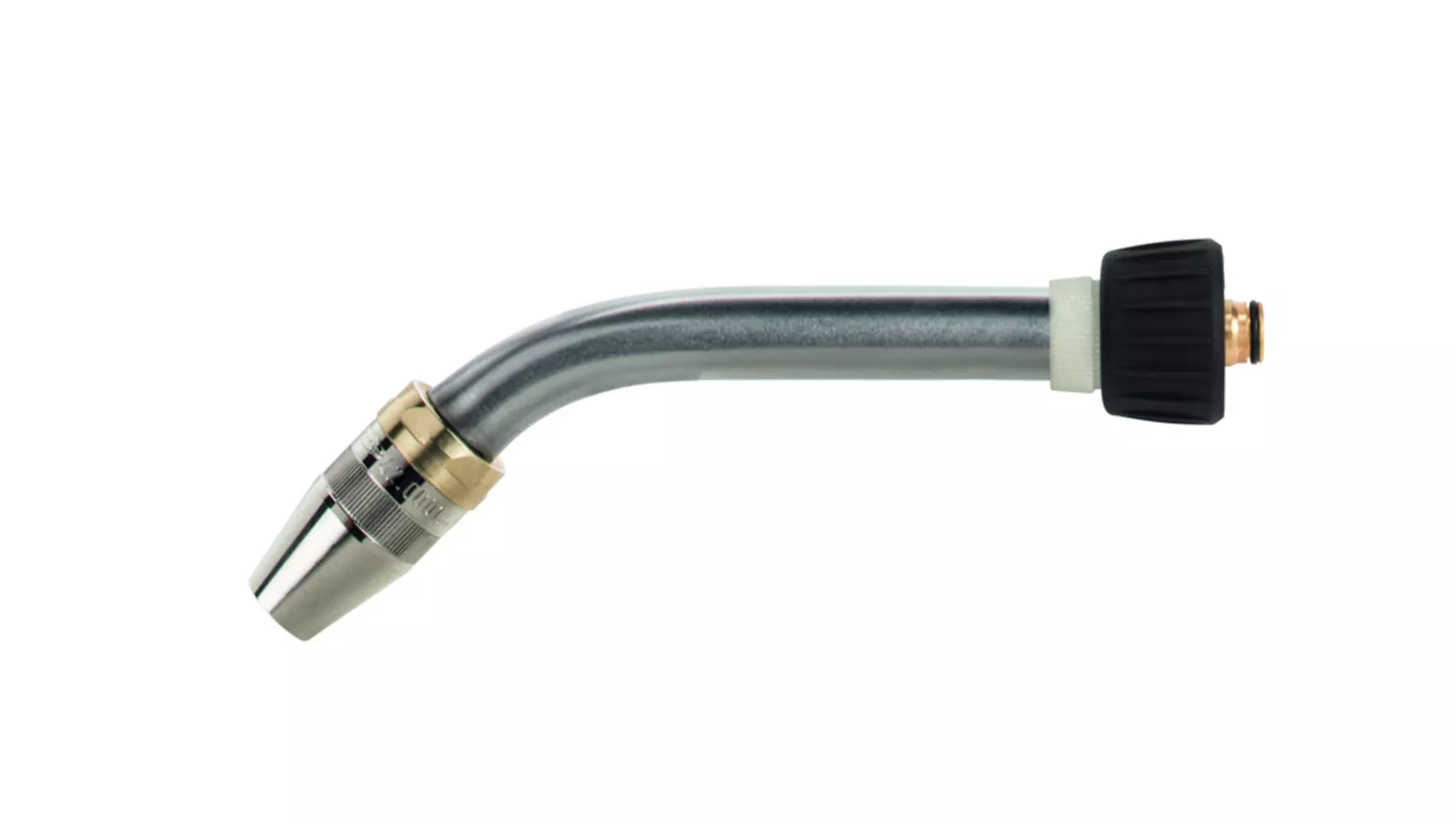

Multilock - patented interface

The MultiLock system enables the torch body to be changed quickly without having to replace the entire hose package. This enables flexible adaptation to the respective welding challenge.

360° | The torch body can be turned through 360° to permit the greatest possible welding flexibility on components with challenging geometries.
0°| The 0° position is fixed by an anti-twist device.
Integrated water stop | Prevents water from escaping when the torch body is removed.

Highlights & options - exceptional accessibility

Perfectly cooled

Video: Cooling

Cost efficient through robustness

The water- and gas-cooled MIG / MAG welding torches get the most out of any application. Perfect cooling can also maximize the service life of components and thus improve cost efficiency.

Learn more about gas-cooled welding torches

Water cooling system

On water-cooled systems the cooling system has been brought forward and outward as far as possible. The shape of the contact tip means that less radiant heat is now absorbed. This alone brings a temperature reduction of up to 70 °C for the wearing parts.

More about water-cooled welding torches

Welding fume extraction

Video: Welding fume extraction

Optimal protection for health and work environment

Welding fumes can be harmful to health, which is why Fronius believes in extracting the welding fumes directly at the point of origin – the welding torch. Thanks to fume extraction torches, the welder and their wider working environment are effectively protected against harmful emissions.

Exento Fume Extraction Torch and Set

Exento extraction kit

Compatible with every Fronius MIG/MAG welding torch – including the PushPull variants
Special geometry of the extraction nozzle for optimal fume capture without affecting the gas shield
Up/Down and JobMaster possible
Continuously adjustable extraction nozzle
LED light function may still be used, depending on the position of the extraction duct

More Information

Exento fume extraction torch

Five different power categories: 3x air-cooled and 2x water-cooled
Extraction capacity controlled directly on the handle

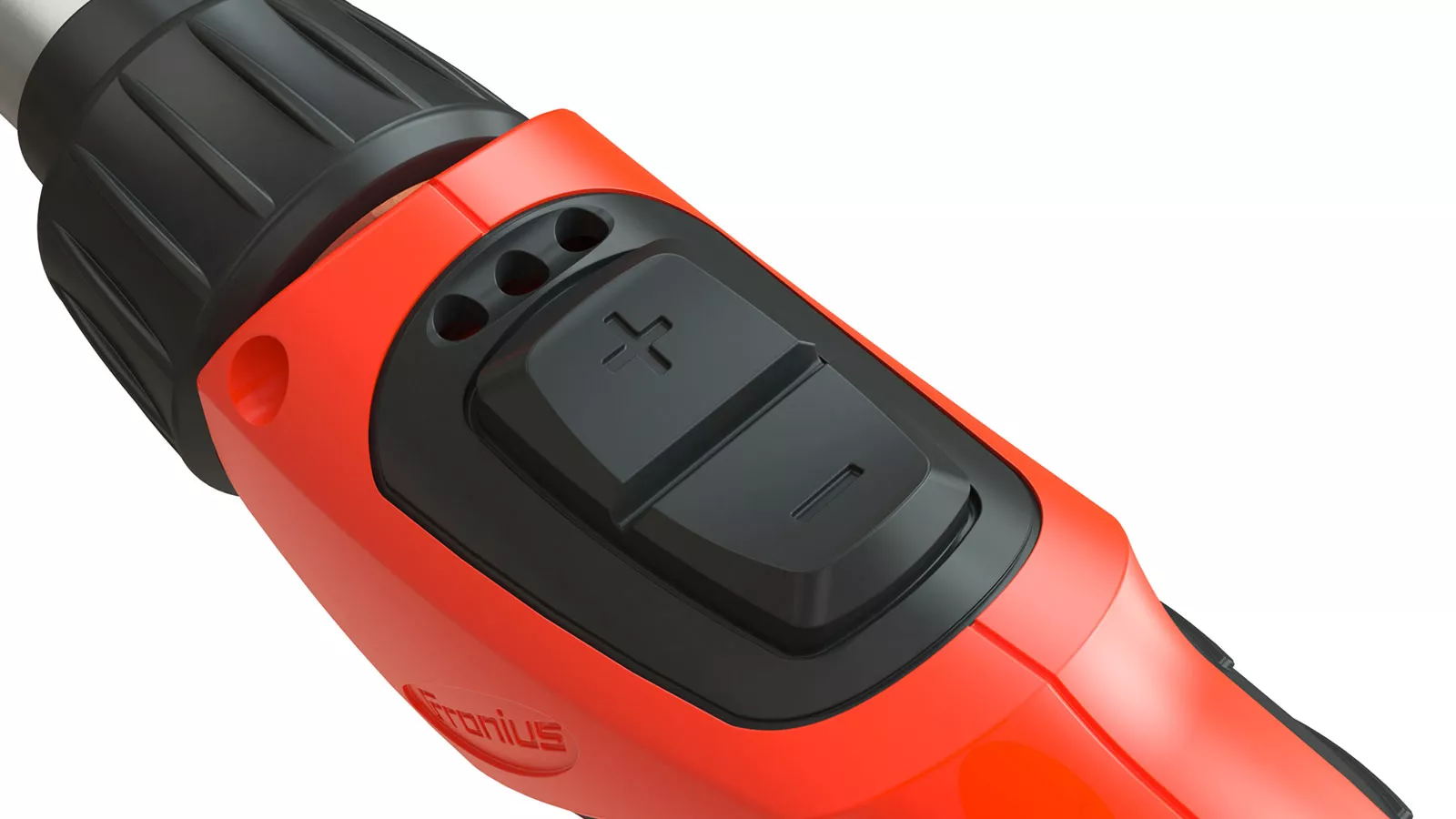

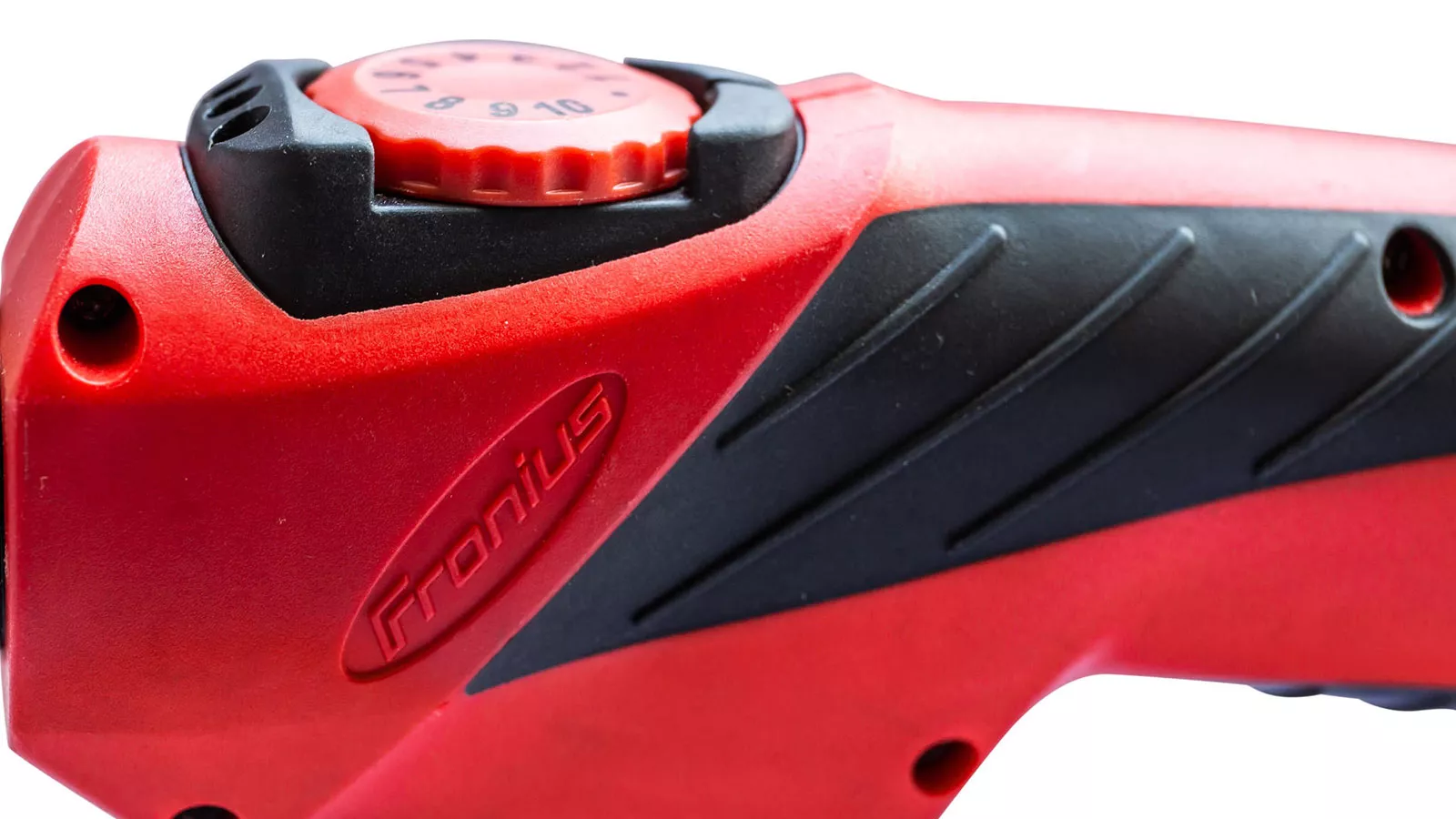

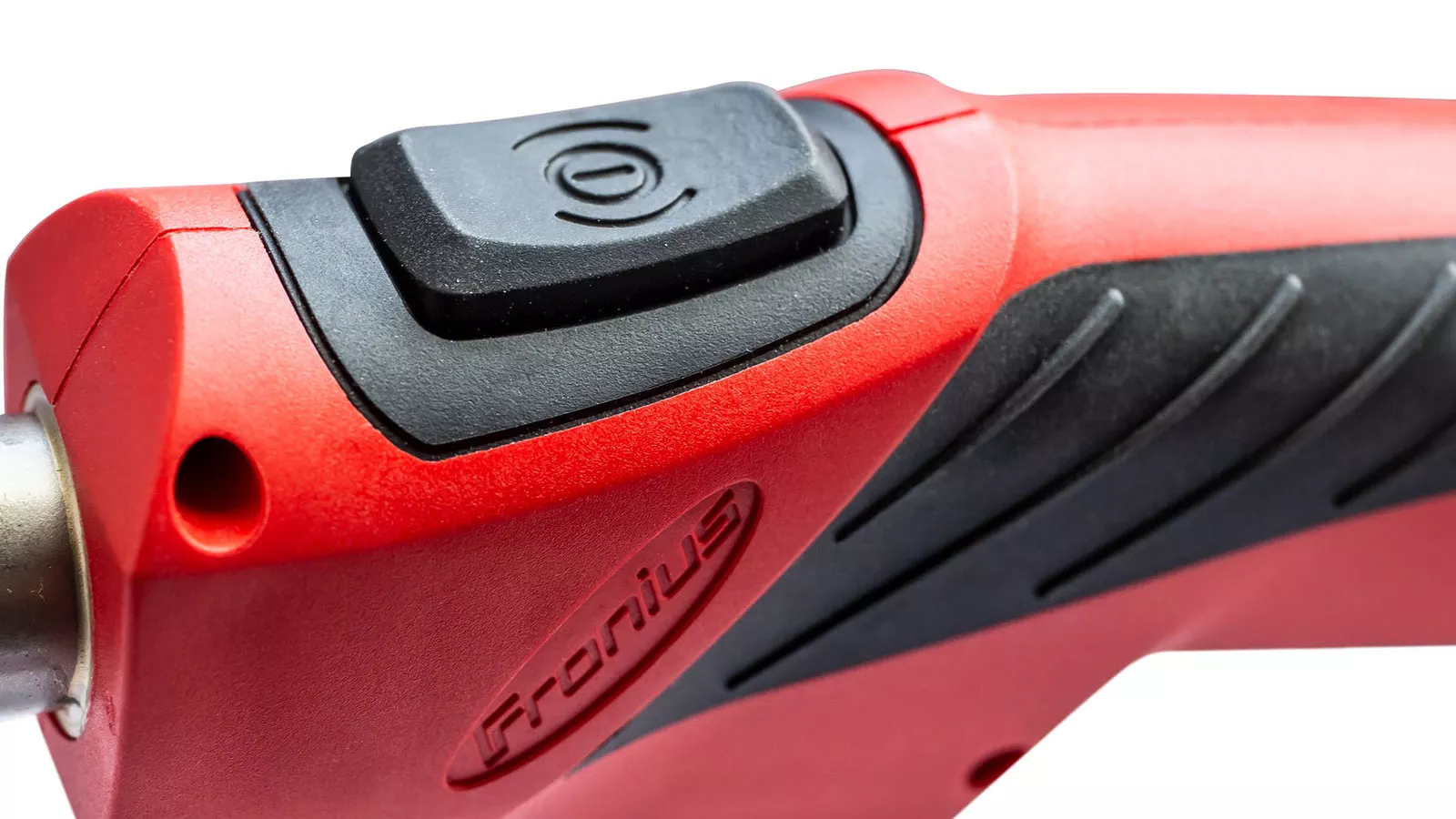

Four different user interfaces available: Up/Down, JobMaster, potentiometer, top torch trigger
LED light for welding in dark environments as well as for quality control
1.3 m leather protection tube directly on the handle for perfect protection against high temperatures and welding spatter
Quick tester of the extraction capacity directly at the suction nozzle

More Information

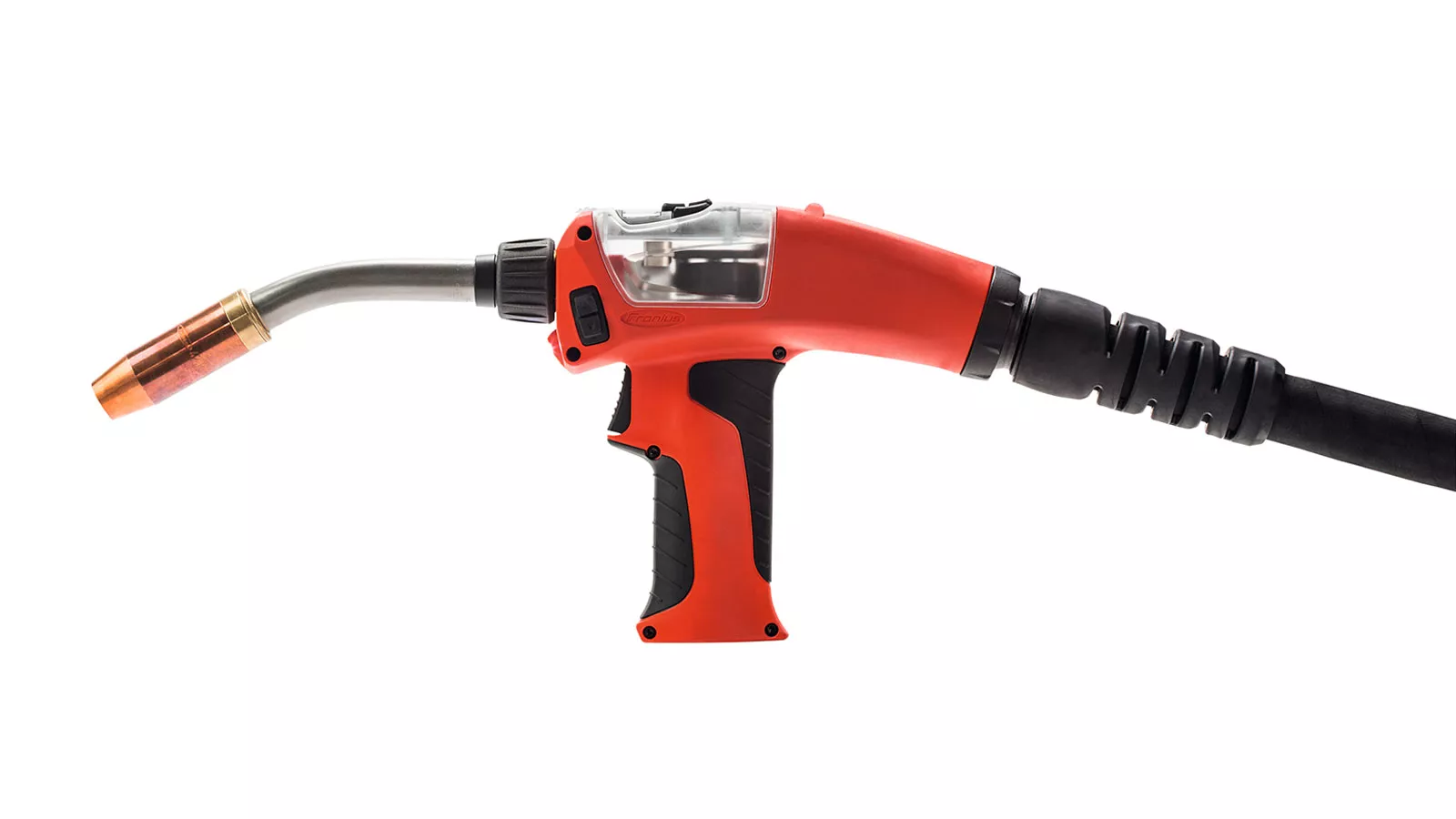

High precision: PullMIG welding torch

At a working height of 1 meter, the PullMig welding torch weighs just 1.6 kg and is therefore 30% lighter than comparable models. Its compact design means there is barely any size difference to conventional welding torches. The PullMig is a favorite for aluminum applications and where long hosepacks is required (up to 15 m) – situations in which a reliable and precise wirefeed is essential.

For the CMT welding process Fronius specially developed the PullMig CMT welding torch with a highly dynamic drive motor.

Learn more about PullMig welding torch

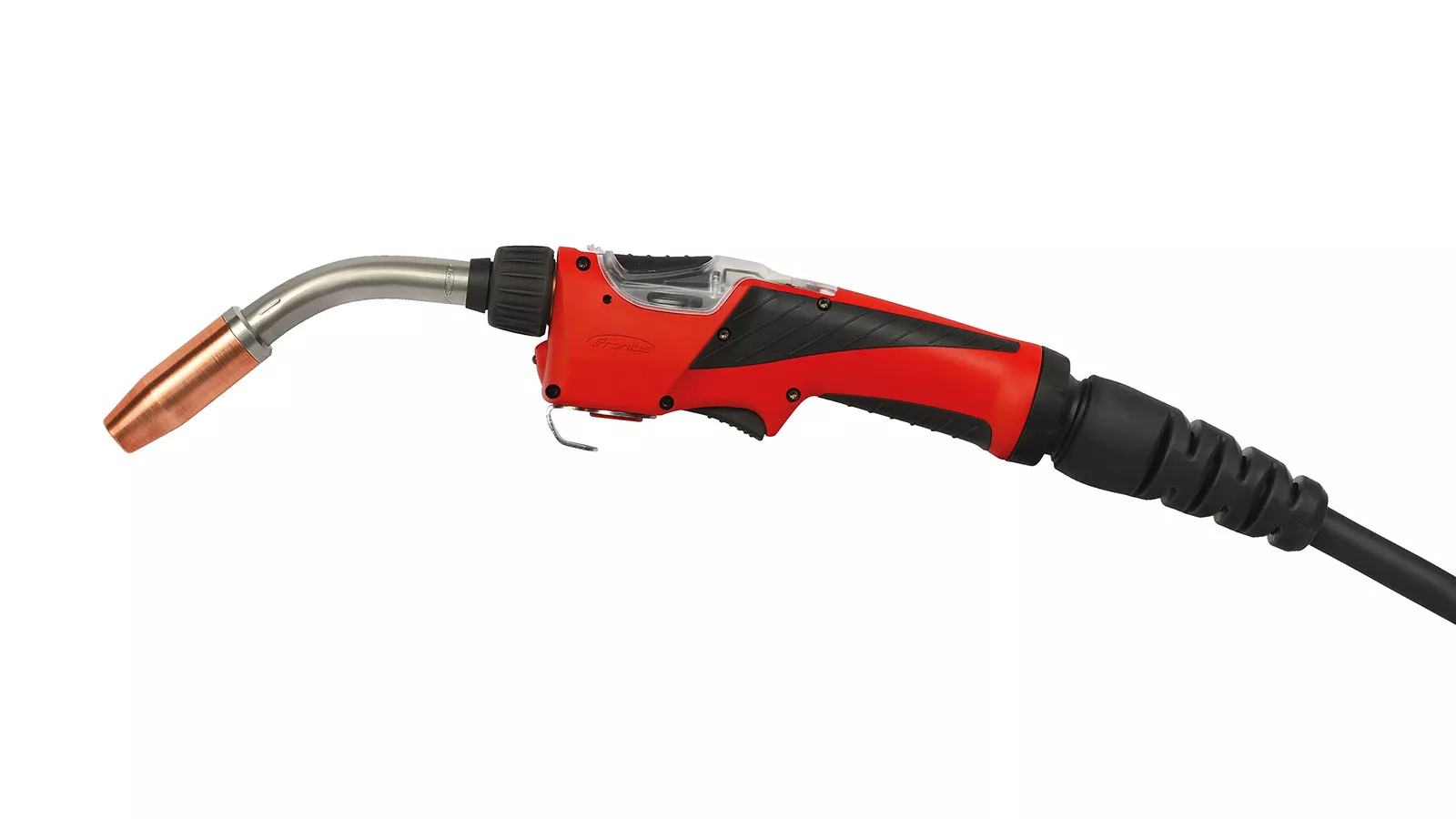

MTG 320i PullMig welding torch

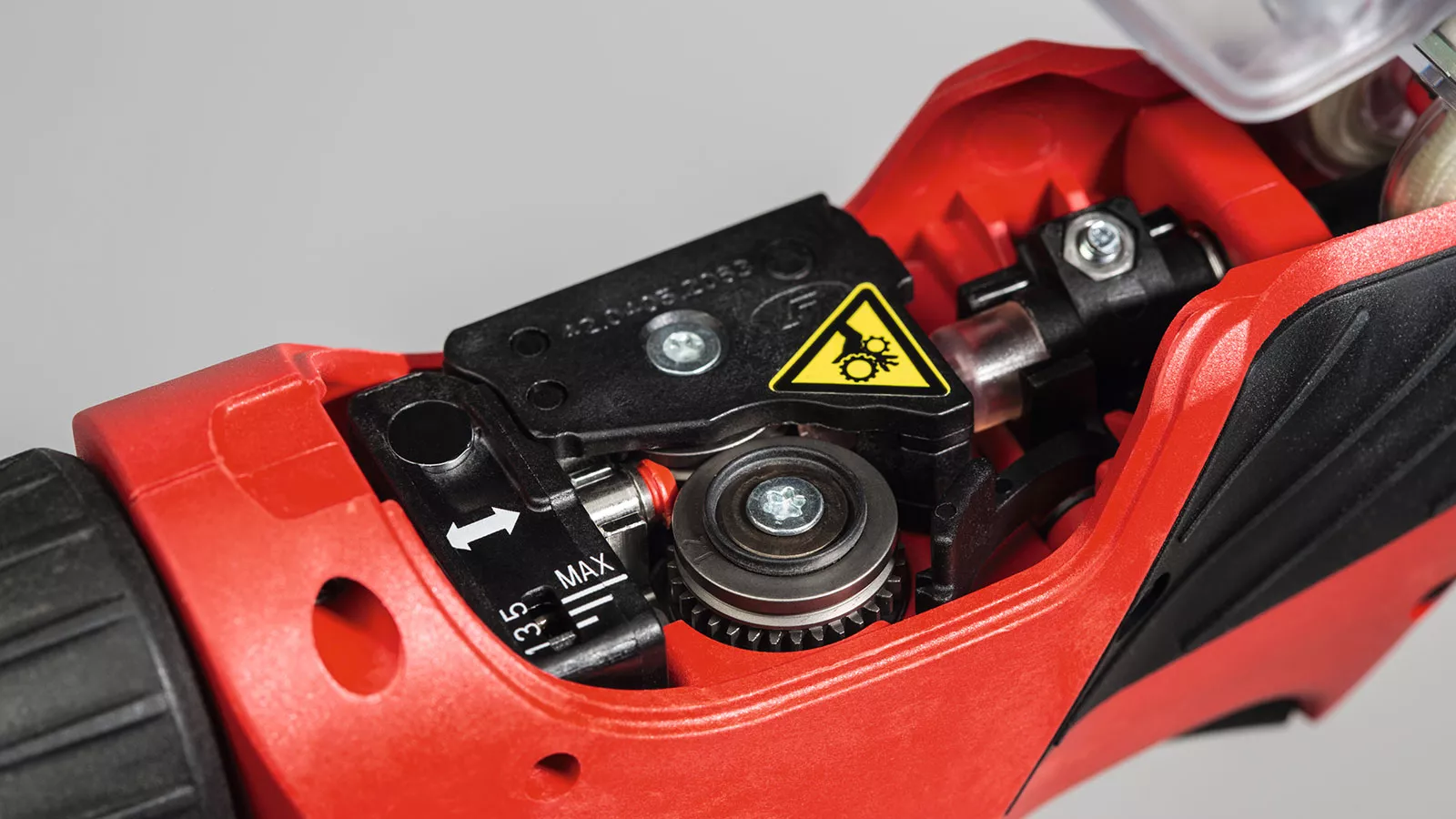

PullMig drive unit

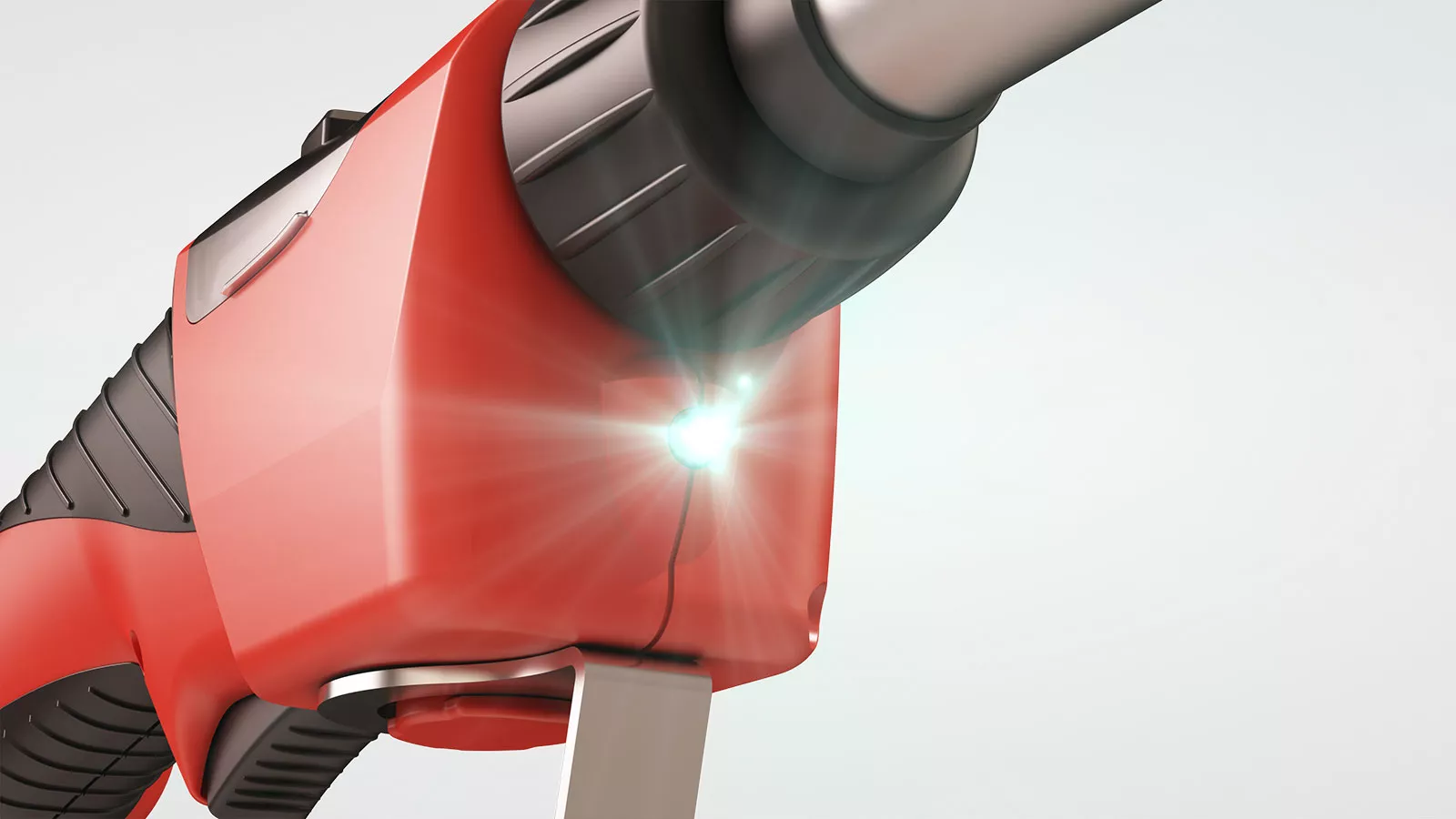

LED-lighting

PullMig CMT welding torch

High compatibility with third-party devices

Video: Compatibility

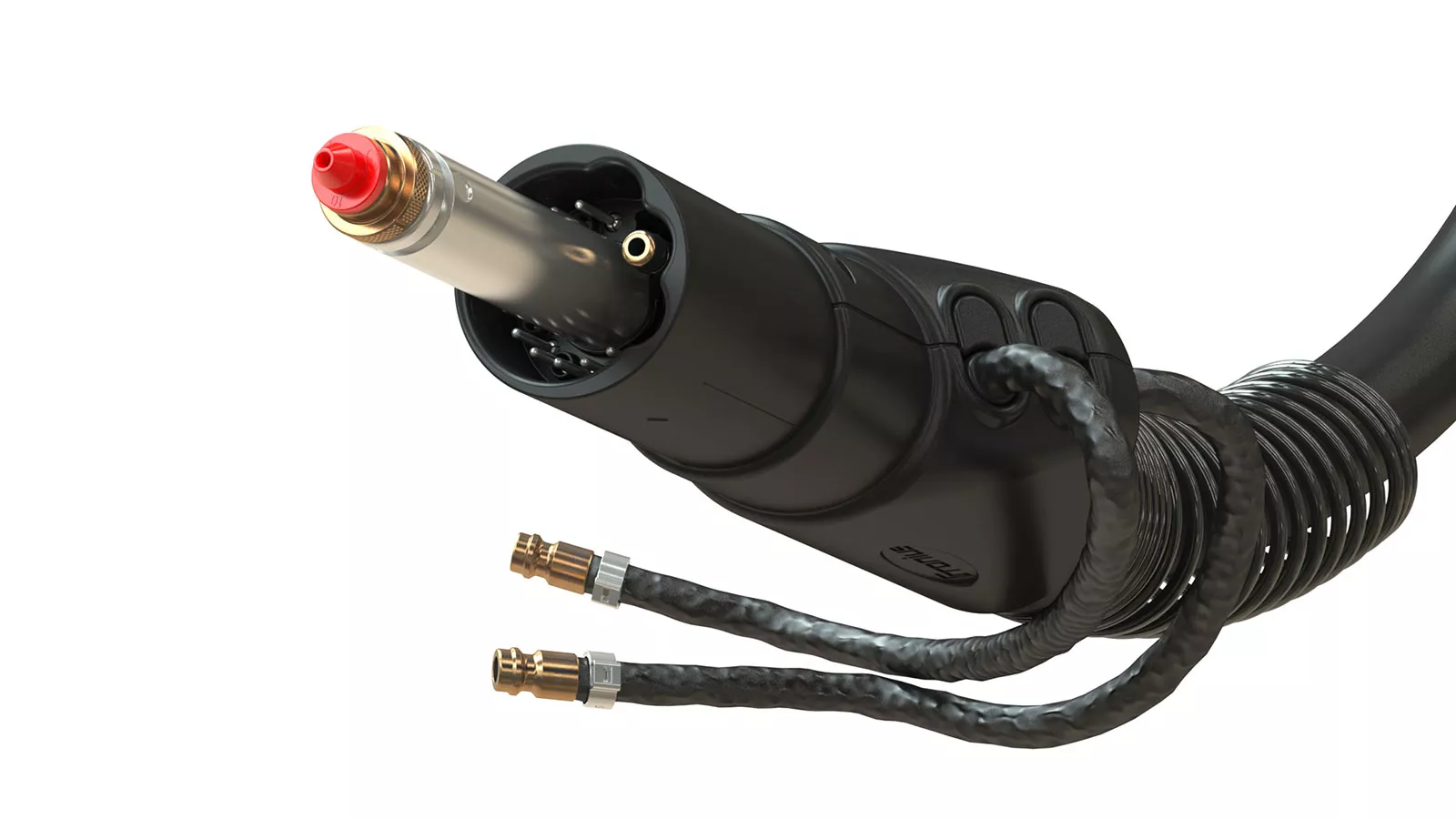

FSC - One connection for all media

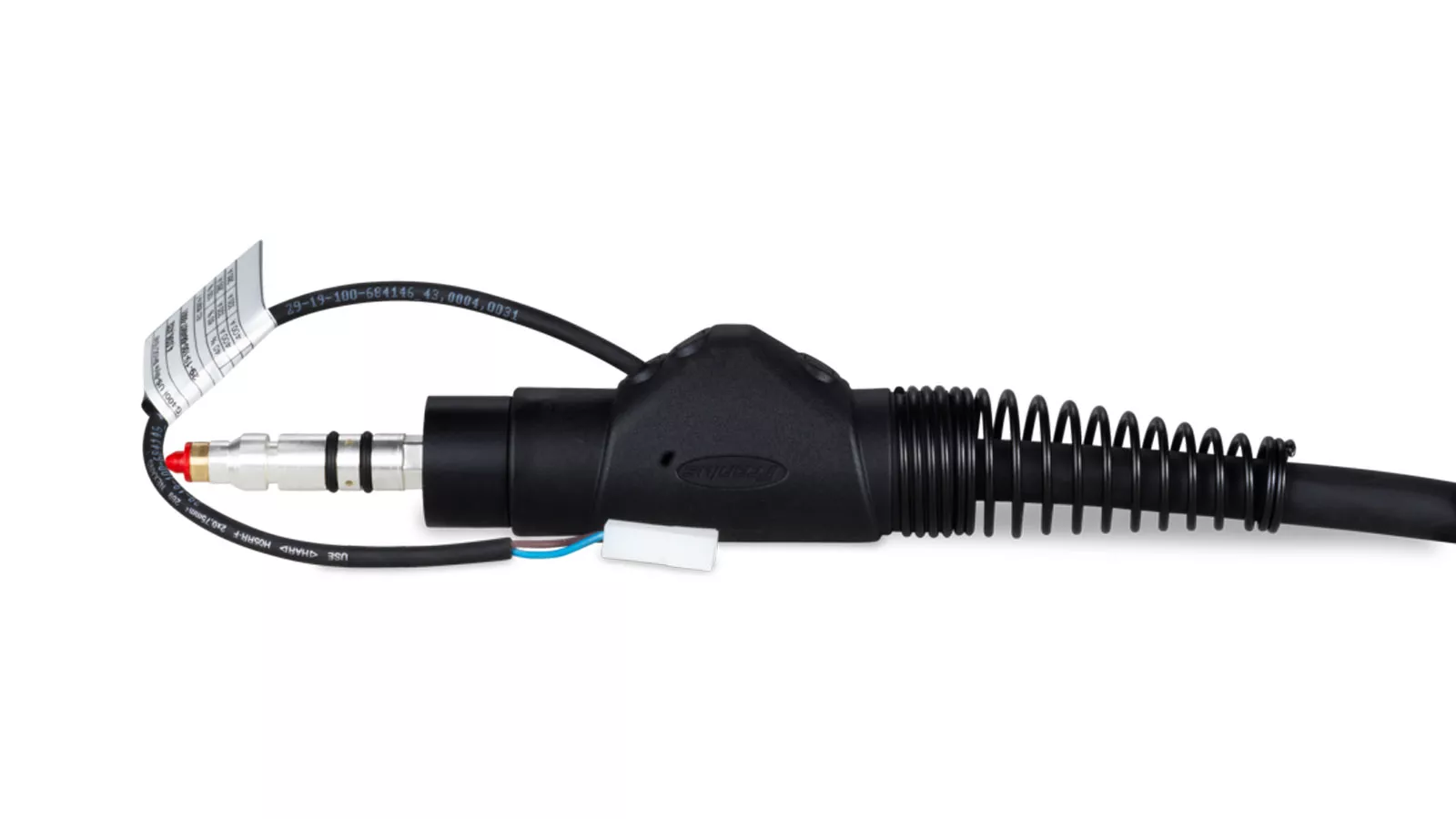

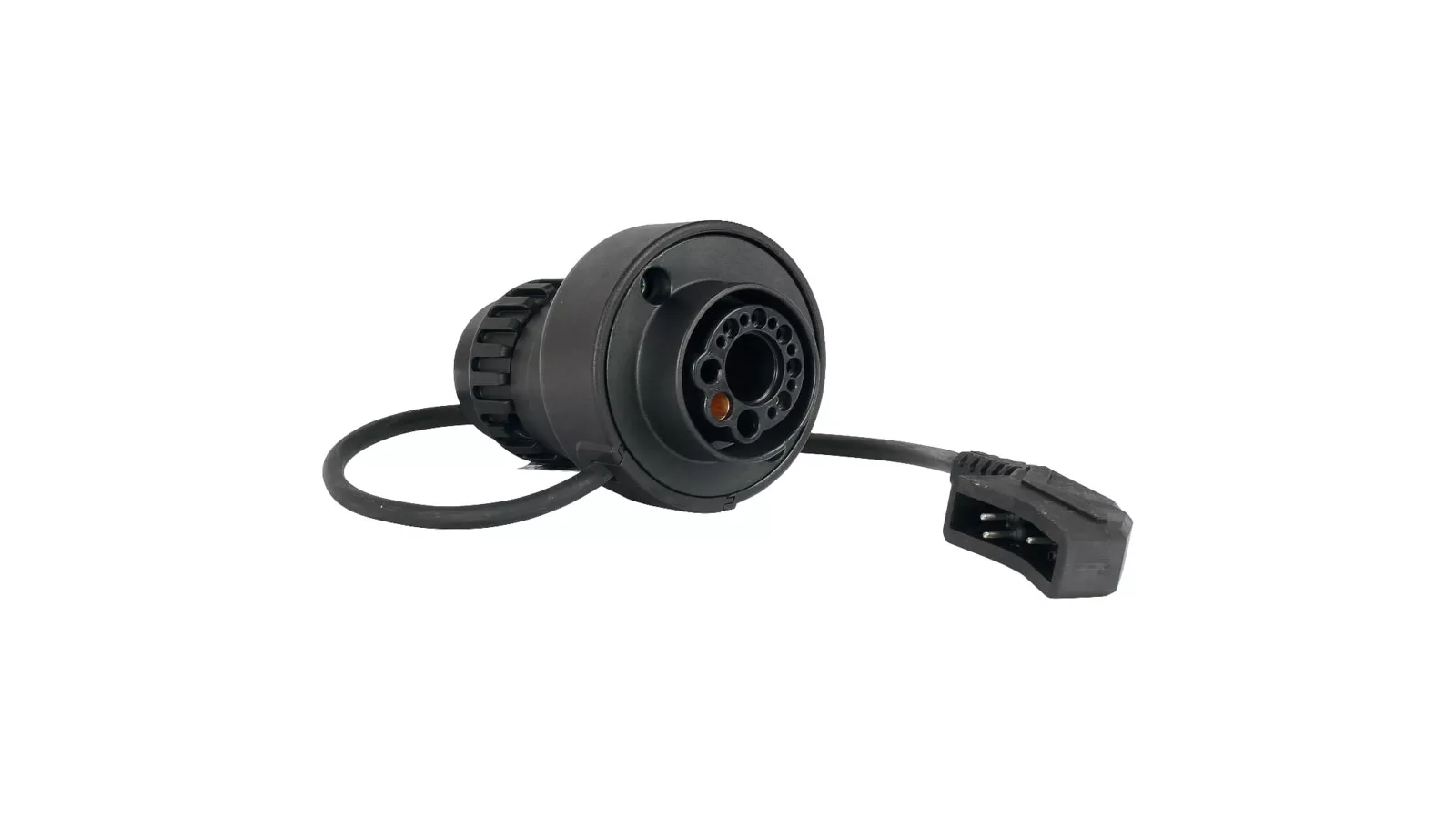

The Fronius System Connector (FSC) serves as a central connection for all media. This ensures the hose pack to be connected easily and safely to the wire feeder in less than 10 seconds - without tools. For welding equipment from other manufacturers, 4 different central connection variants (suitable for Euro, Lincoln, Miller, Hobart) are offered to guarantee the highest possible compatibility. For this purpose standalone hose packs with corresponding connectors or adapters for existing hose packs are offered. You can get more detailed information from our sales consultants.

Latest Fronius Torches

MTG

The welding torches in the MTG product family are gas-cooled MIG/MAG manual welding torches with an output of up to 530 A. The ergonomically shaped grip, a ball joint and optimum weight distribution allow for effortless operation. Their robust design makes the welding torches reliable partners for all applications.

MTG Welding Torch

MTW

The welding torches in the MTW product family are water-cooled MIG/MAG manual welding torches with an output of up to 700 A. The ergonomically shaped grip, a ball joint and optimum weight distribution allow for effortless operation. Their robust design makes the welding torches reliable partners for all applications.

MTW Welding Torch

PullMig

The PullMig welding torch from Fronius weighs only around a third as much as comparable models. The design is so compact that there is hardly any noticeable difference in size from conventional, manual welding torches – yet the torch delivers unrivalled precision. The Multilock torch body, which can be rotated through 360°, serves as the base of the torch, with a stainless steel outer pipe and integrated water stop in the hosepack.

PullMig Welding Torch

MTG

The welding torches in the MTG product family are gas-cooled MIG/MAG manual welding torches with an output of up to 530 A. The ergonomically shaped grip, a ball joint and optimum weight distribution allow for effortless operation. Their robust design makes the welding torches reliable partners for all applications.

MTG Welding Torch

MTW

The welding torches in the MTW product family are water-cooled MIG/MAG manual welding torches with an output of up to 700 A. The ergonomically shaped grip, a ball joint and optimum weight distribution allow for effortless operation. Their robust design makes the welding torches reliable partners for all applications.

MTW Welding Torch

PullMig

The PullMig welding torch from Fronius weighs only around a third as much as comparable models. The design is so compact that there is hardly any noticeable difference in size from conventional, manual welding torches – yet the torch delivers unrivalled precision. The Multilock torch body, which can be rotated through 360°, serves as the base of the torch, with a stainless steel outer pipe and integrated water stop in the hosepack.

PullMig Welding Torch
