Fronius Wattpilot Designed to move.

The electric car charging solution that always provides the cheapest charging

Whether at home or on the move, with a PV system or not: the Fronius Wattpilot charges your customers' electric cars more flexibly and intelligently than ever before.

The Fronius Wattpilot comes in two versions and power categories:

Home – the fitted charger for use at home.

Power categories: 11 kW and 22 kW

Mounting: hanging upright indoors or outdoors, fitted

Go – the transportable solution for when you're on the road

Power categories: 11 kW and 22 kW

Mounting: hanging upright indoors or outdoors, detachable and portable

Both versions offer sustainable charging with solar power or green electricity from the grid and help you and your customers to slow down climate change a little bit.

It's about e-mobility that drives us all forward. Fronius Wattpilot. Designed to move.

Two charging modes for flexible e-mobility

Your customers can charge their vehicles to suit their needs. The Fronius Wattpilot offers two charging modes which can be selected directly on the electric car charger or via the Fronius Solar.wattpilot app:

Eco Mode

The preferred mode for PV system owners. It ensures that the vehicle is charged – if available – with self-generated solar power or the cheapest mains current.

Next Trip Mode

Next Trip Mode is for those who want to reliably charge their electric car to cover a specific journey – a certain number of kilometres – by a specific time. The Fronius Wattpilot reliably and intelligently charges the required amount. If available, surplus PV power from your own PV system is used or the cheapest mains current.

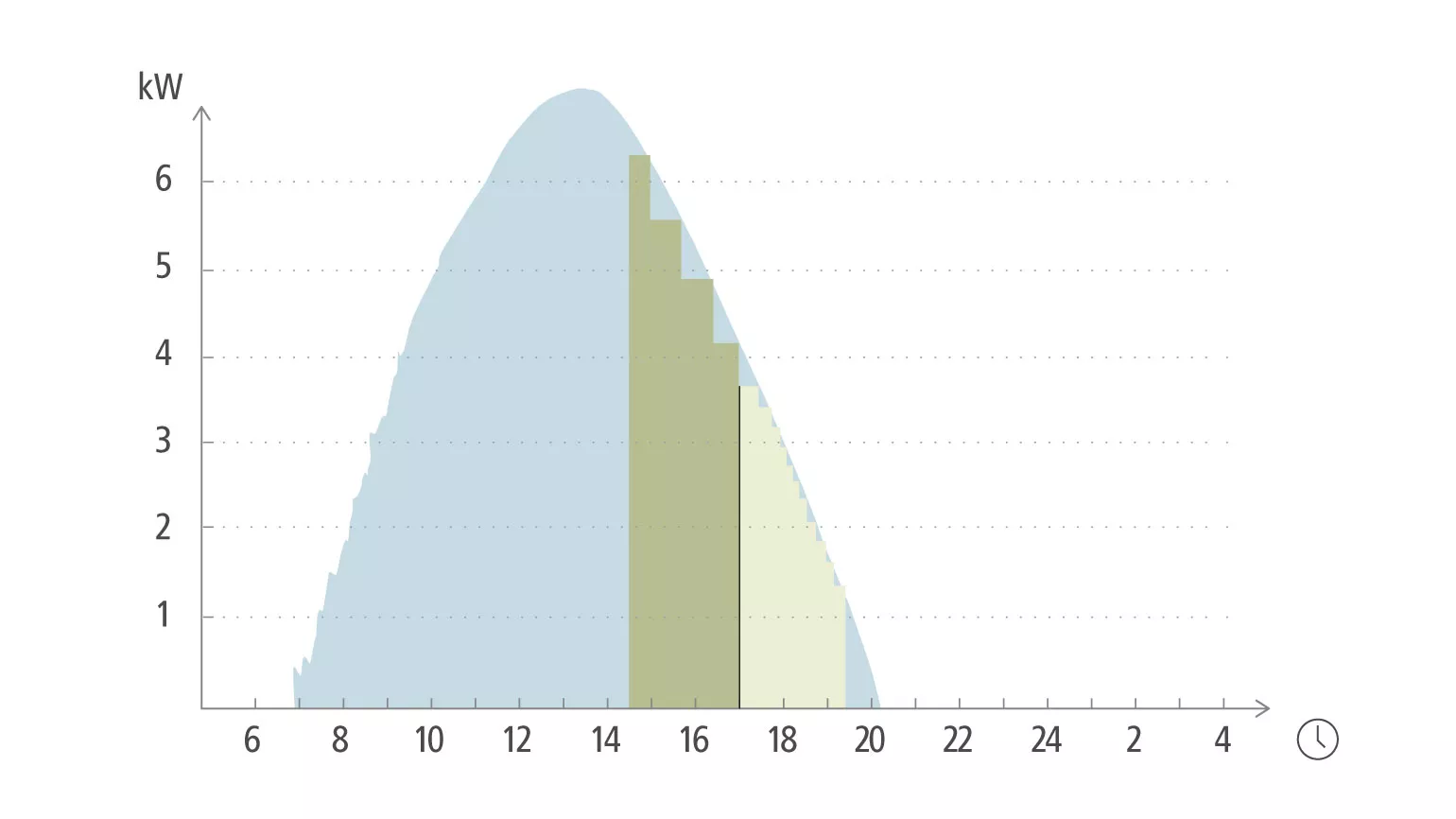

It doesn't get cheaper than this: Charge using your own solar power

If your customers are PV system owners, they'll already be benefiting from the environmental and economic advantages of generating their own energy. As electric car owners, they can significantly increase their potential savings with the Fronius Wattpilot.

This electric car charger can make optimal use of any surplus energy from the PV system to sustainably charge the vehicle at virtually no cost.

The benefits: your customers save while they charge and make optimum use of their PV system so that it pays for itself faster.

• PV surplus • Electric car

Dynamic Load Balancing for optimal power distribution

With Dynamic Load Balancing, the amount of self-generated solar power available from your customer’s own photovoltaic system as well as the maximum household load connected to the grid is optimally used: your customers can charge up to three electric cars at the same time and in an energy-optimised manner with one system. The energy produced by the photovoltaic system as well as the household consumption are taken into account. This not only saves high connection costs, but also effectively avoids load peaks. The energy required can be precisely controlled and therefore is dynamically distributed among the vehicles being charged.

Fronius Wattpilot Home 11 J: Clear winner in the ADAC PV charging solution test 2023

Our Fronius Wattpilot Home 11 J came out the clear winner in the ADAC test, where it was the cheapest charging station for surplus PV charging.

Comprehensive range of features including automatic and integrated 1/3-phase switching
Solar.wattpilot was the best app in the test
Lowest standby consumption of all tested charging stations

Discover our test winner

Solar.wattpilot – the app for the charger

As flexible as the charging solution itself – your customers can control the Fronius Wattpilot with ease from their smartphones or tablets:

Easy commissioning of the Fronius Wattpilot
Clear display of all charging data
Select a charging mode anytime, anywhere
Change settings with just a click
Software updates made easy

Download now and discover flexible charging!

The Fronius Wattpilot The electric car charger for at home and on the road. Useful functions and features for your customers.

Quick selection The Eco and Next Trip modes can be selected directly on the device. The exact charging current can also be set by pressing and holding the button.

Residual current device Also protects against additional costs: Since the Fronius Wattpilot detects DC fault current immediately, no upstream type B RCD is required.

Security & control The Fronius Wattpilot can, if required, be secured with an approved RFID chip or card, protecting it against misuse and making it secure for use in public spaces.

Anti-theft protection The Fronius Wattpilot and the type 2 charging cable are valuable items that you should and can protect. The corresponding anti-theft protection is included in the scope of supply – a shackle as protection for the Wattpilot and the locking option for the type 2 charging cable.

Quick selection

The Eco and Next Trip modes can be selected directly on the device. The exact charging current can also be set by pressing and holding the button.

Residual current device

Also protects against additional costs: Since the Fronius Wattpilot detects DC fault current immediately, no upstream type B RCD is required.

Security & control

The Fronius Wattpilot can, if required, be secured with an approved RFID chip or card, protecting it against misuse and making it secure for use in public spaces.

Anti-theft protection

The Fronius Wattpilot and the type 2 charging cable are valuable items that you should and can protect. The corresponding anti-theft protection is included in the scope of supply – a shackle as protection for the Wattpilot and the locking option for the type 2 charging cable.

The Fronius Wattpilot in action

“Thanks to its fast and accurate control, the Wattpilot adapts perfectly to my PV generation. This means that no surplus energy is lost from the PV system.

The Wattpilot and GEN24 also interact exceptionally well.”

Franz Breitwieser,
Wattpilot user & product manager of GEN24

The Fronius Wattpilot and sustainability

The Fronius Wattpilot is a key part of our product portfolio, enabling 24 hours of sun – for a world which is 100% based on renewable energy, without exception:

The Wattpilot electric car charger promotes emission-free mobility and helps to slow down climate change
With your own PV system and the Fronius Wattpilot, electric cars can be charged independently and sustainably
Adjustable modes enable particularly resource-conserving charging processes

Webinar: Intelligent charging with the Fronius Wattpilot & App

By professionals for professionals. Find out everything you need to know about operating and configuring the Fronius Wattpilot with the Solar.wattpilot app. Our experts show you how to use the individual functions and charging modes step by step. You'll also get an insight into the range of functions on the app and the options for visualising and controlling the charging process. Watch the video

All versions of the Fronius Wattpilot

	Wattpilot Go 11 J	Wattpilot Go 22 J	Wattpilot Home 11 J	Wattpilot Home 22 J
Max. charging power	11 kW	22 kW	11 kW	22 kW
Dimensions (l x w x h)	28,7 x 15,5 x 10,9 cm
Mains connection	CEE16 plug red 5-pin / 30 cm including neutral conductor	CEE32 plug red 5-pin / 30 cm including neutral conductor	5-pin cable / 180 cm including neutral conductor
Optional adapter sets	CEE32 red fused, CEE blue camping plug, safety plug 16A	CEE16 red, CEE blue camping plug, safety plug 16A	-
Network connection	WLAN
Residual current device	20 mA AC, 6 mA DC
Supply line cable cross-section	Min. 2,5 mm²	Min. 6 mm²	Min. 2,5 mm²	Min. 6 mm²
